The summing amplifier

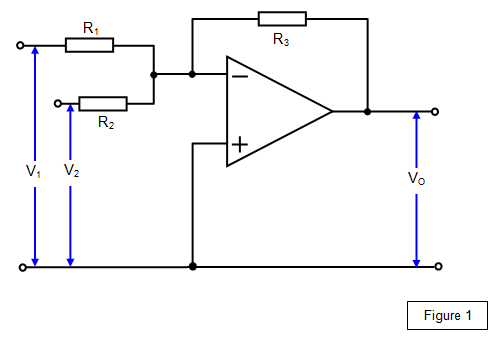

If there are two inputs to the inverting input of the op amp, as shown in Figure 1, then it will behave as a summing amplifier, the output being an amplification of the sum of the two inputs.
Using the symbols shown it can be proved that:
