A train with lots of trucks
Think about a train of several trucks being pulled
along a horizontal track by an engine. If the engine is accelerating the train then all the trucks
must be accelerating at the same rate. If this were not true the train would either stretch or
squash itself!
Consider the forces in the link between the engine and the first truck
and in each link along the train. The engine has to pull all the trucks and so therefore the
force in the first link (1) will be large. However the link between the last but one truck and the
one at the end (2) only has to accelerate the final truck and so the force in that link will be
much smaller.
So for the
line of trucks the forces between each pair of trucks will be different. You should be able to

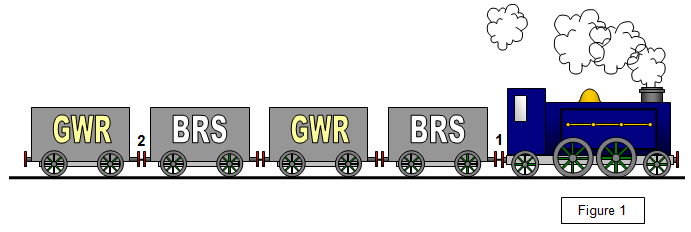

understand this by thinking about the picture (Figure 1).
However if the last truck
was fixed to the ground and the engine simply pulled on the carriages without them being
able to move the forces in all the links would be the same!
Example problem

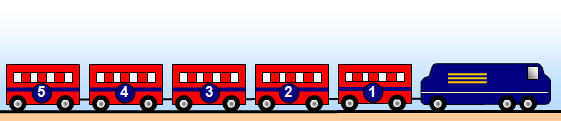

The engine pulls five carriages with an acceleration of lets say 4 ms
-2 - this must be the same for the whole train. If this were not so the train would fall apart. Each carriage has a mass of 2000 kg.
Now using Newton's Second Law (F = ma) the force between the engine and carriage 1 must be (5x2000)x4 = 40000 N. The force between carriage 1 and carriage 2 is (4x2000)x4 = 32000 N.
That between carriage 2 and carriage 3 is (3x2000)x4 = 24000 N and so on.
So you see as you go down the train further from the engine the forces needed to pull the remaining part of the train get less.
