# Viscosity or liquid friction

Solid surfaces in contact exert a frictional force on each other when they are moved. In a similar way, the relative motion of layers of liquid is restricted by friction.

The rate at which your blood flows through your body, the rate at which oil flows along poipe lines and the rate at which dust particles fall through the air are all affected by the viscosity of the fluid (gas or liquid).

The frictional forces within a fluid give rise to a property known as the viscosity of the liquid. The greater the viscosity the less easy it is for the fluid to flow and the stickier it feels. The viscosity of a liquid also affects how easily solids can move through it - try and imagine the difference between swimming in water and in treacle!

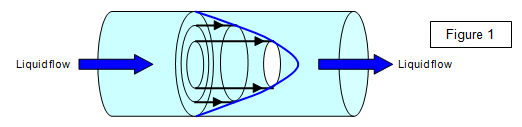

Consider the flow of liquid down a pipe as shown in the following diagram.

The liquid will be moving from left to right due to the pressure difference between the ends of the tube. However because the friction between the fluid and the walls of the tube is greater than between two adjacent layers of liquid the liquid in the centre of the pipe will be travelling faster than that at the edges.

Imagine that the liquid is moving in layers, rather like the cards in a pack, and assume that no one layer crosses another layer. The frictional forces within the liquid act between one layer and another. Such motion is called laminar flow. The velocity of particles at a given distance from the centre of motion is constant. However if the layers do intermix we will get turbulent flow.

## Streamlines

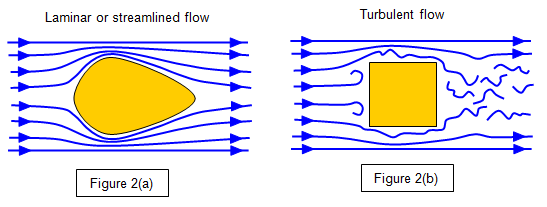

A streamIine is a curve whose tangent always lies along the direction of motion of the fluid at that point. The streamlines never cross and in laminar flow they do not alter with time. (Figure 2(a)) but this is not the case with turbulent flow (Figure 2(b)). Clearly it is important for a vehicle moving through a fluid that the flow of the fluid around it is laminar so that the drag on it may be reduced to a minimum.

Student investigation

Construct a series of solid shapes with cross-sections as shown in Figure 3. Place them one at a time into a tank and allow water to flow round them. A few crystals of potassium manganate(vii) (potassium permanganate) should be introduced into the stream to show the direction of flow.

Investigate the nature of the flow of water round these obstacles noting the streamlines. The effect of the speed of water flow should be studied by varying the pressure head of the water flowing into the tank

## Moving a tube through a fluid

Alternatively we could consider a stationary fluid and a moving tube. It is then clear that as the tube moves through the fluid it will drag some fluid along with it, while the fluid at the centre of the tube will lag behind. There is therefore a larger relative velocity between the tube and the central fluid than there is between the tube and the fluid in contact with it. This change in velocity with distance is called a velocity gradient.

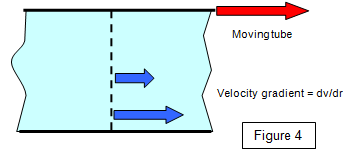

The velocity gradient is defined as the change in velocity with distance across the tube. (Figure 4).

For laminar flow:

The frictional force is directly proprtional to the product of velocity gradient and the cross sectional area of the tube.

Fluids that behave in this way are known as Newtonian fluids.

You can write the relationship as a formula:

F = hA x velocity gradient

where η is a property called the coefficient of viscosity for the fluid.

This defined as:

Coefficient of viscosity (η) = tangential stress/velocity gradient

and is therefore very similar to the shear modulus for a solid. The units of the coefficient of viscosity are Nsm-2, kgm-1s-1 or Pas, and it has dimensions ML-1T-1.

The values of some coefficients of viscosity are given in the table below. Since viscosity varies with temperature they are all given for 20oC.

 Fluid Viscosity (Pas) Fluid Viscosity (Pas) Air 1.8x10-5 Water 1.0x103 Glycerol 8.3x10-1 Golden syrup 1.0x102 Castor oil 2.42 Mercury 1.5x10-3 Blood 3 - 4x10-3

(The viscosity of blood depends on the concentration of the red blood corpuscles and therefore can be used to detect red blood corpuscle deficiency.)

The viscosity of a fluid changes markedly with temperature and some illustrations of the variation of viscosity with temperature are shown below:

 Pitch 5x1010 Pas at 273 K Water 0.0018 Pas at 273 K 1.1x101 Pas at 373 K 0.0010 Pas at 293 K An oil 5.3 Pas at 273 K 0.0007 Pas at 310 K 0.99 Pas at 293 K 0.23 Pas at 313 K

You have probably noticed that tarmac roads become sticky in summer, the change in the viscosity of the tar from 273 K to 373 K being enormous!
