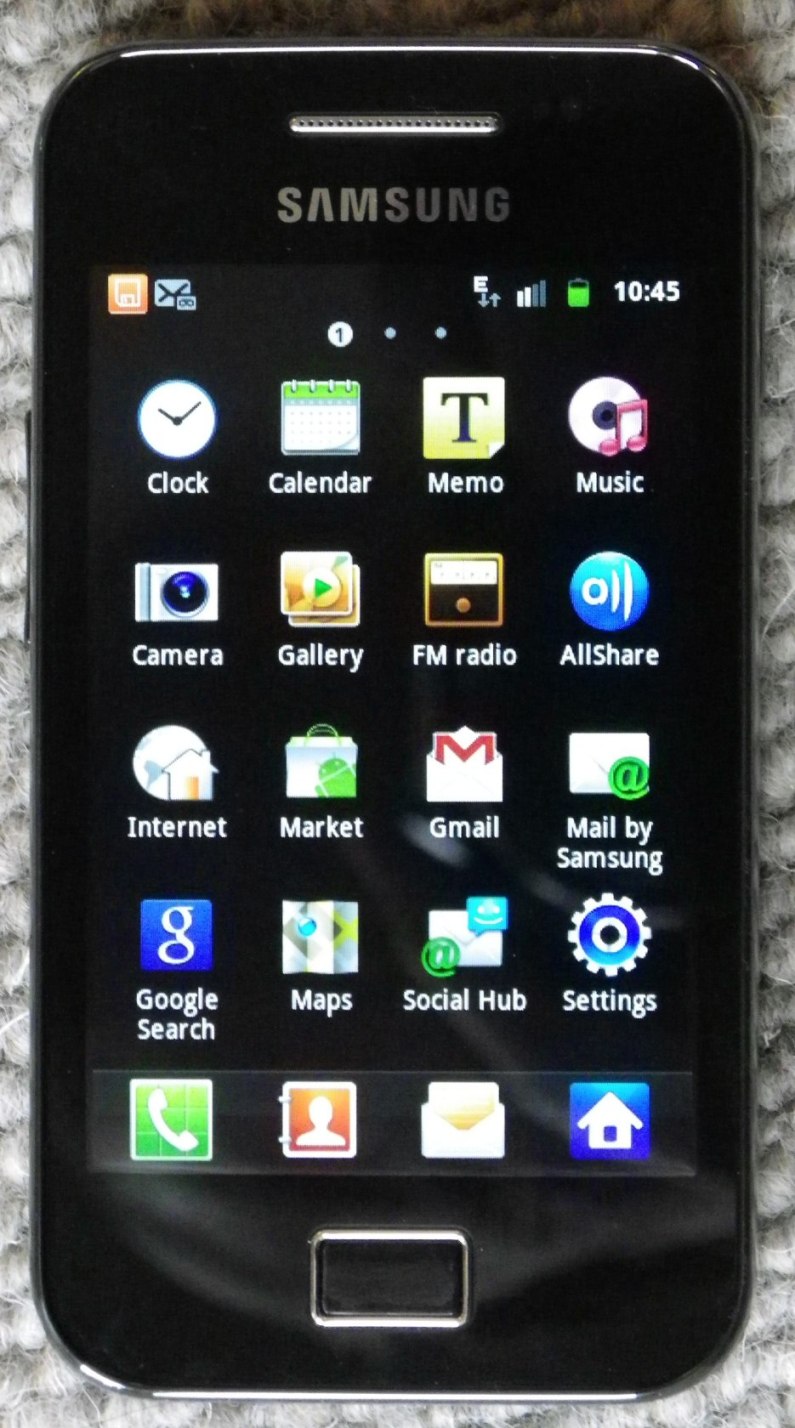

Mobile phones (mobiles)

When you make a call using your mobile the phone sends a digital signal at a frequency in the region of 900 MHz, this is in the microwave region of the electromagnetic spectrum. A local transmitting/receiving station receives this call via a selected frequency and reroutes via other stations, if needed, to the receiving phone.

The country is divided into cells with each cell containing one "relay" station. In regions where the phone traffic is high more cells are needed in a given area. In cities one station covers around 2 km whereas in the country this may extend to over 25 km. You will probably have seen some of these relay stations springing up all over the place if you travel around the country. The size of the cell (hence the name cellular phones) also depends on the frequency of that particular band. Higher frequencies do not travel so far without distortion and so the cells are smaller. The frequency bands used by mobile phones in Britain are from 880 MHz to 960 MHz, 1710 MHz to 1880 MHz; the upload and download bands being different within each of the two main bandwidths.

A mobile phone is really just a low powered radio and mini computer which is why you need so many of the relay stations and cells to cover the country.



You can check the coverage in your area of the Uk by visiting the ofcom coverage webitse at Mobile phone coverage in the UK


I tried to make a call using my mobile while coming home across the channel from France last summer. Although there are plenty of stations on either side of the channel in France and England I was out of range of all of them and so could not make the call.

Texting has become very popular since it is brief, makes no noise and does not require you to have the phone up against your head.

Photographic phones
These mobiles are a combination of a mobile phone and a digital camera. A digital picture is transmitted as well as the audio signal. These days many phones are capable of taking not only still pictures but also video clips. In fact it is quite difficult to buy a mobile that is not also a camera. Most even include a GPS facility and allow Internet access. It has become a hand-held minicomputer.

Courtesy and mobile phones

Mobile phones can be really useful but always think about other people when using your mobile! Talk quietly and always switch it off when you are somewhere where an incoming call might upset people near you. I have been at a concert where the music was spoiled by someone's phone going off. Many people use mobile phones to send text messages instead of talking texting is much less of a nuisance than using your voice.


Possible medical effects of mobile phones

There has been a lot of public concern about the dangers of microwave radiation to your brain when using a mobile phone but at present there has not been any firm conclusions. However I do know people who use text messages rather than holding the phone up close to their heads when making a call. The wavelengths of microwaves used to transmit information using a mobile phone is normally just under 30 cm compared with the 12 cm used in microwave ovens. The shorter wavelength means a higher energy and so more damaging to human tissue.


I have investigated the magnetic fields produced by a mobile phone. Ther are small areas of high field around the on/off button, camera and loudspeaker.

See also: Mobile phones (14-16)
